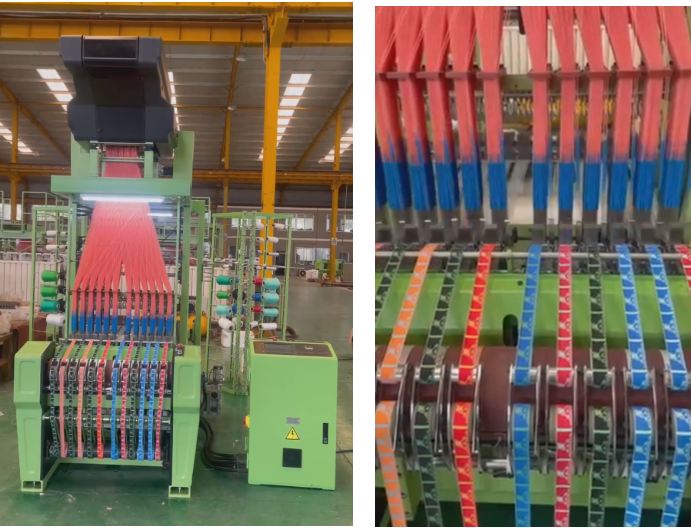

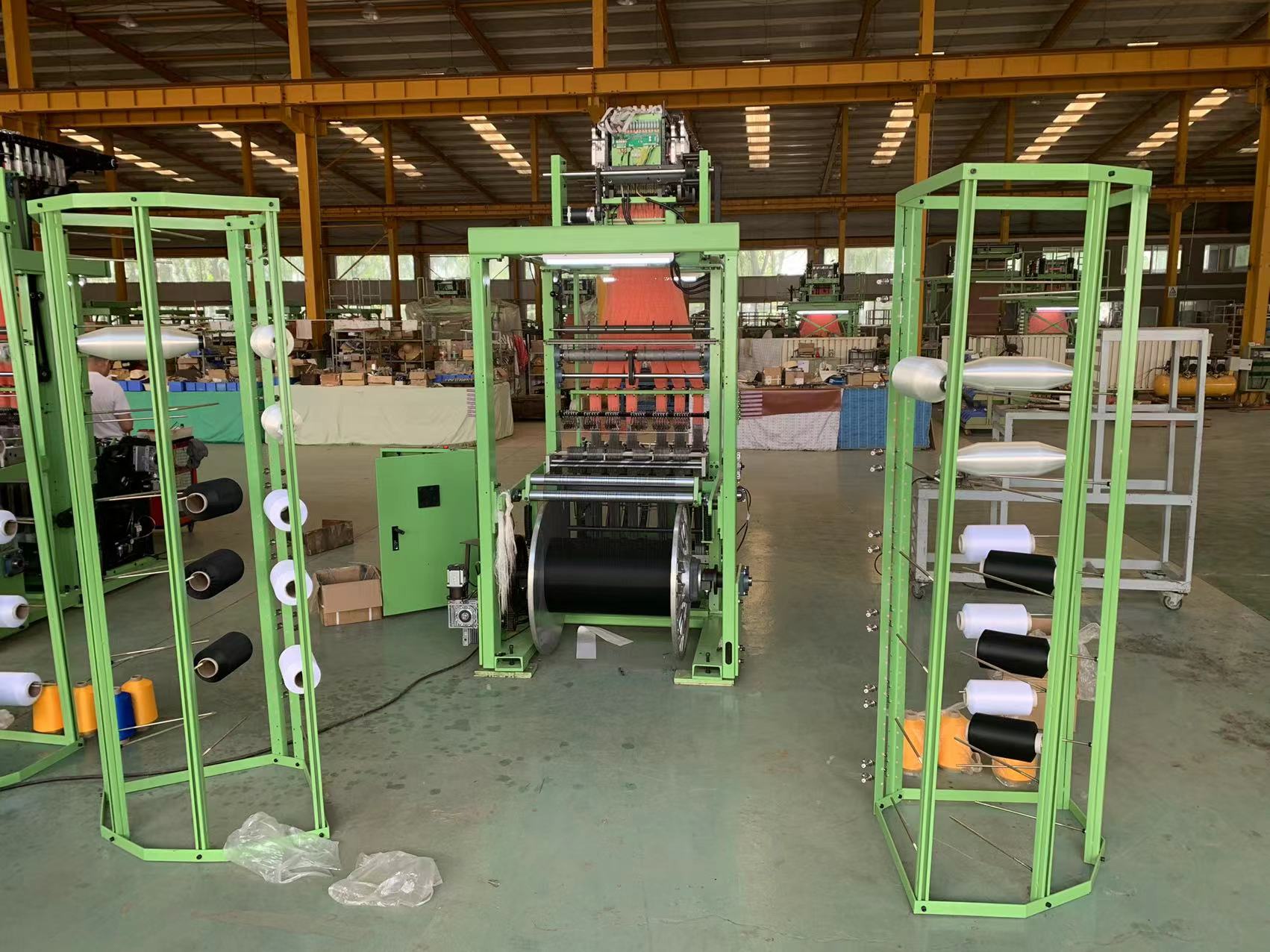

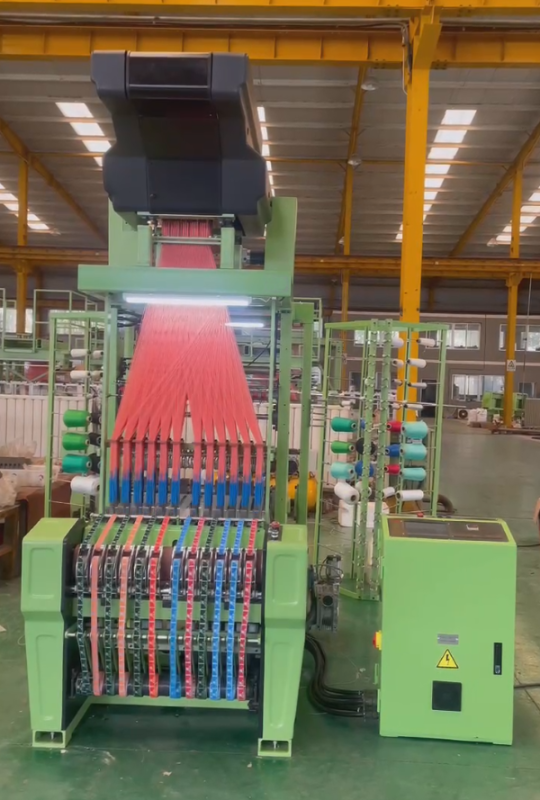

COMPUTER LABEL WEAVING JACQUARD LOOM MACHINE

Model

DMLW 8/45/256

DMLW 6/60/384

Jacquard device

256

384

Reed width

45mm

57mm

Max label width

45mm

57mm

Max weft color number

6

6

Output number

8

6

Power

3.7KW. 380V

3.7KW. 380V

Suitable for

Labels,ties and narrow fabrics etc.

Machine weight

1300KG

1300KG

Machine working size

3750*3000*2922mm

3750*3000*2922mm

Packing

Container/Plywood case

Lead time

65-75 days

1. New version 6.0 control system, with 30 years of professional narrow fabric loom manufacturing experience, high integrated control. The application of the latest technology accurate control, simple operation and low failure rate.

2. Unique control mode, electronic weft take up and electronic let off, which can realize variable-speed weaving. Suitable for high weft density labels and fabrics,weft density can be adjusted.

3. Special programs can be upgraded according to customer requirements to help customers develop and weave special fabrics. Extensible remote control and inspection monitoring to realize remote generation management.

5.The jacquard system is 4 fold knifes grinder drive, advanced design.

6. The jacquard use M5 magnet, easy adjust and change, jacquard board with display, which is easy to operate. accurately and has low failure rate.

7. USB interact.

8. Double conjugate cam design, belt drive, professional narrow fabric loom body design, no weft skew, no long and short marks.

9. Less space requirement. Low power consumption and low operation cost, meeting the requirement of customers for variety of plants.

10. Panasonic servo control speed, take up and let up, advanced and reliable. American GATEX driving belt to ensure stable and long working life.

12. Standard 4 weft color control, maximum 6 colors.

13. Jacquard can be from 192 to 640.

14. Auto rolling device.
